    Alimak Scando 650 Range

    Alimak Scando 650 Range - Vertikal

    Alimak Scando 650 Range

    The Alimak Scando 650 is the world’s most popular construction hoist with the optimal payload, speed and car sizes for a range of construction projects.

    Applications
    :
    Enhancing efficiency on construction sites
    Certifications
    :
    EN 12159, ANSI 10.4, AS 1418.7, TR CU 10-2011 as well as the majority of all national codes
    Size
    :
    1.5 m (W) x 2.8–5.0 m (L)
    Capacity
    :
    1,500–3,500 kg
    Speed
    :
    38–100 m/min
    Voltage
    :
    380–500 V / 50-60 Hz
    Category:

    The Alimak Scando 650 range offers versatile construction hoists designed for efficient and flexible passenger and material transport. With multiple sizes, speeds, and load capacities, the range enhances productivity on-site, combining proven technology with renowned efficiency and sustainability.

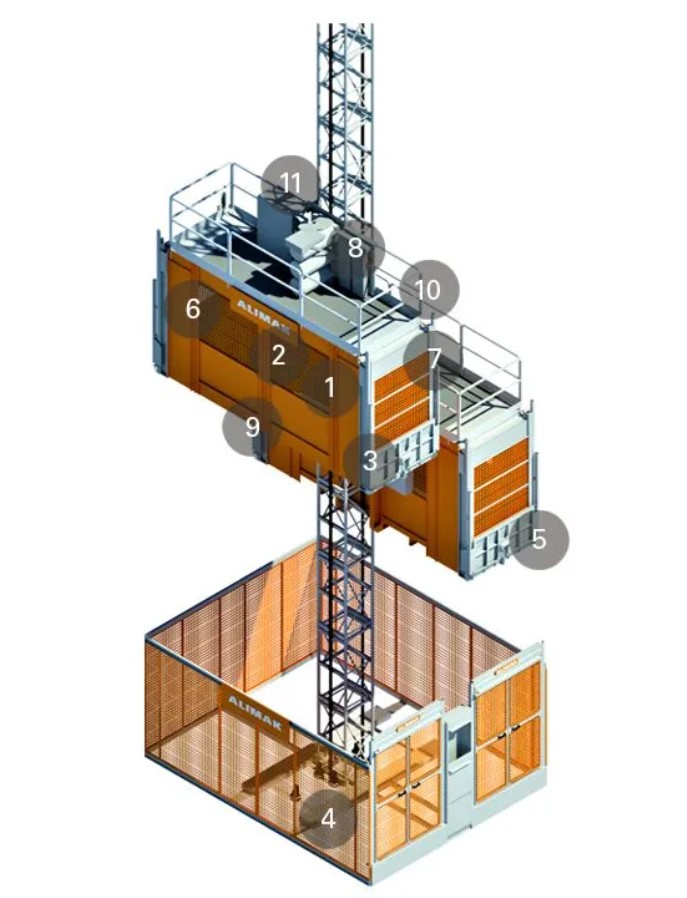

    Product Features

    1. Large display control panel (optional)
    2. Improved fault statu
    3. Durable floor
    4. Service hatch enclosure
    5. Easy floor level programming
    6. Intelligent control
    7. Superior ride comfort
    8. Alimak safety device
    9. Door on long side of car as option
    10. Speed up to 100 m/min.
    11. Highly efficient motors

    Benefits of the Scando 450 construction hoist

    • High-speed vertical access
    • Modular options available
    • Low energy consumption
    • Payloads up to 3,500 kg

    Brochures

    ModelDescriptionDownload
    Alimak Scando 650Learn more about the Alimak Scando 650 range
    		Download
    Alimak Scando 650 FC-SLearn more about the Alimak Scando 650 FC-S range
    		Download
    Alimak Scando 650 FC-S 35/50Learn more about the Alimak Scando 650 FC-S 35/50
    		Download

    Specification sheets

    ModelSize (W × L)Capacity (kg)Speed (m/min)Download
    Alimak Scando 650 FC /28-321.5 × 2.8–3.2 m1,900–2,4000–42Download
    Alimak Scando 650 FC /35-39 ext.1.5 × 3.5–3.9 m1,700–2,1000–42Download
    Alimak Scando 650 FC /35-391.5 × 3.5–3.9 m1,800–2,2000–42Download
    Alimak Scando 650 FC /28-321.5 × 2.8–3.2 m900–1,9000–54Download
    Alimak Scando 650 FC /35-39 ext.1.5 × 3.5–3.9 m800–1,7000–54Download
    Alimak Scando 650 FC /35-391.5 × 3.5–3.9 m1,300–1,7000–54Download
    Alimak Scando 650 FC /28-321.5 × 2.8–3.2 m2,700–3,2000–54Download
    Alimak Scando 650 FC /35-391.5 × 3.5–3.9 m2,500–3,2000–54Download
    Alimak Scando 650 FC /28-321.5 x 2.8–3.2 m1,700–2,5000–65Download
    Alimak Scando 650 FC /35-39 ext.1.5 × 3.5–3.9 m1,500–2,3000–65Download
    Alimak Scando 650 FC /35-391.5 × 3.5–3.9 m2,600–3,2000–54Download
    Alimak Scando 650 FC /39-46 ext.1.5 × 3.9–4.6 m2,400–3,0000–54Download
    Alimak Scando 650 FC /39-50 ext.1.5 × 3.9–5.0 m2,200–3,0000–54Download
    Alimak Scando 650 FC /35-391.5 × 3.5–3.9 m1,600–2,4000–66Download
    Alimak Scando 650 FC /39-46 ext.1.5 × 3.9–4.6 m1,400–2,3000–66Download
    Alimak Scando 650 FC /39-50 ext.1.5 × 3.9–5.0 m1,400–2,2000–66Download
    Alimak Scando 650 FC-S /35-391.5 × 3.5–3.9 m3,000–3,2000–80/100Download
    Alimak Scando 650 FC-S /39-46 ext.1.5 × 3.9–4.6 m2,800–3,0000–80/100Download
    Alimak Scando 650 FC-S /39-50 ext.1.5 × 3.9–5.0 m2,800–2,9000–66Download

    BIM Files

    View Alimak BIM Gallery
